Ignition Interruption: Fixing Your Furnace's Flame Failure

Why Your Furnace Has Gone Cold

There's nothing quite like the sinking feeling of a cold house on a chilly Alabama morning. You wake up, feel the nip in the air, and realize your trusty furnace has decided to take an unscheduled break. When your furnace is not igniting, it's more than an inconvenience; it's a disruption to your comfort and peace of mind. But before you resign yourself to wearing a winter coat indoors, it's important to know that many common furnace ignition problems have surprisingly simple solutions.

This guide will walk you through the essential steps to diagnose why your furnace won't light. We'll start with some basic troubleshooting you can safely perform yourself and then move on to identifying problems that require the expertise of a professional HVAC technician.

Quick Troubleshooting for Furnace Ignition Issues:

1. Check your thermostat: Is it set to "heat"? Is the temperature set higher than the current room temperature? Sometimes the solution is that simple.
2. Replace the air filter: A severely clogged filter can restrict airflow, causing your furnace to overheat and shut down as a safety precaution.
3. Check the circuit breaker: Your furnace is connected to your home's electrical panel. A tripped breaker will cut power to the unit, preventing it from starting.
4. Verify the gas supply: Ensure the gas valve to your furnace is open. The handle should be parallel to the gas pipe.
5. Look for error codes: Many modern furnaces have a small window with a blinking LED light. The pattern of these blinks can be a diagnostic code that tells you what's wrong. Check your furnace's manual to interpret the code.

If your furnace attempted to start several times but failed, it may be in a temporary safety lockout. After addressing basics like the thermostat, filter, and breaker, you can try a simple reset: turn the furnace power switch off (or flip the dedicated breaker), wait 30–60 seconds, then restore power. Avoid repeated resets—if the unit still won’t ignite, a safety device is likely detecting a real issue that needs attention.

Many furnaces also post an LED code legend on the inside of the blower door panel. If you can safely remove the panel with power off, note the code description and replace the door firmly so the safety switch engages before powering up again. A steady light typically indicates normal operation, while specific blink counts point to issues like pressure switch faults, ignition failures, or flame sensing errors. Models vary, so your user manual is the best reference for your unit’s exact meanings.

While these quick checks can often resolve the issue, some problems are more complex and potentially dangerous. It's crucial to know when to step back and call a professional.

When to call a professional immediately:

• You smell gas (a rotten egg odor). This could indicate a gas leak, which is a serious safety hazard.
• The furnace makes repeated, loud clicking or banging noises without igniting.
• You see visible signs of damage, such as cracks or soot, on the furnace unit.
• You've tried the basic troubleshooting steps, and the furnace still won't light.

For safety, ensure you have functioning carbon monoxide detectors on every floor and near sleeping areas. If an alarm sounds, evacuate and call for help from outside the home. Learn more about symptoms and prevention here: carbon monoxide poisoning.

Coming home to a cold house on a chilly day is never fun. As one homeowner put it: "Winter's creeping into your home, and you have no way of keeping it out without a functional furnace. What now?"

The good news? Many furnace ignition problems have simple solutions you can handle yourself. Others require professional expertise to diagnose and fix safely. Understanding the difference can save you time, money, and keep your family comfortable. Modern furnaces are sophisticated machines with multiple safety systems. When they won't ignite, it's usually because one of these safety features is doing its job—protecting you from potential hazards like gas leaks or carbon monoxide exposure.

Understanding Furnace Ignition: How It Works and What Can Go Wrong

When we talk about a furnace "igniting," we're referring to the moment the furnace burners light up, creating the heat that will warm your home. It’s the critical first step in the heating process. Think of it as lighting a match – without that spark, there’s no flame, and no warmth. If your furnace not igniting is the problem, it means this crucial step is failing. This ignition process is a carefully orchestrated sequence of events, and a failure at any point can bring the whole system to a halt.

Furnaces, whether they use propane, natural gas, or oil, need a reliable way to ignite the fuel. Over the years, technology has evolved, leading to different ignition systems, each with its own quirks and common failure points. Understanding which type of ignition system your furnace uses can help you narrow down why it might not be igniting. For broader context on how central heating furnaces work in general, see this overview: Furnace (central heating).

The Three Types of Furnace Ignition Systems

Most residential furnaces use one of three main types of ignition systems. Identifying yours can be the first step in troubleshooting.

Key Components and Their Roles in Ignition

Several key components work together to ensure your furnace ignites safely and efficiently. A problem with any one of them can stop the process cold.

• Thermostat: This is the brain of your HVAC system. It senses the room temperature and, when it drops below your set point, sends a signal to the furnace's control board to start the heating cycle.
• Control Board (or Circuit Board): This is the central nervous system of your furnace. It receives the signal from the thermostat and orchestrates the entire ignition sequence, activating the inducer motor, igniter, and gas valve in the correct order.
• Igniter: Whether it's a pilot light, a spark igniter, or a hot surface igniter, this component's job is to provide the initial flame or heat source to ignite the gas.
• Flame Sensor: This is a crucial safety device. It's a small metal rod that sits in the path of the burner flame. Its job is to confirm that the gas has successfully ignited. If it doesn't detect a flame within a few seconds, it signals the control board to shut off the gas supply to prevent a dangerous buildup of unburned gas.
• Gas Valve: This valve controls the flow of natural gas or propane to the burners. It only opens when the control board gives the signal, after confirming that the igniter is hot and ready.
• Blower Motor: While not directly part of the ignition, the blower motor is what circulates the warm air through your home's ductwork once the furnace is running. A problem with the blower can sometimes trigger a safety lockout, preventing the furnace from igniting.

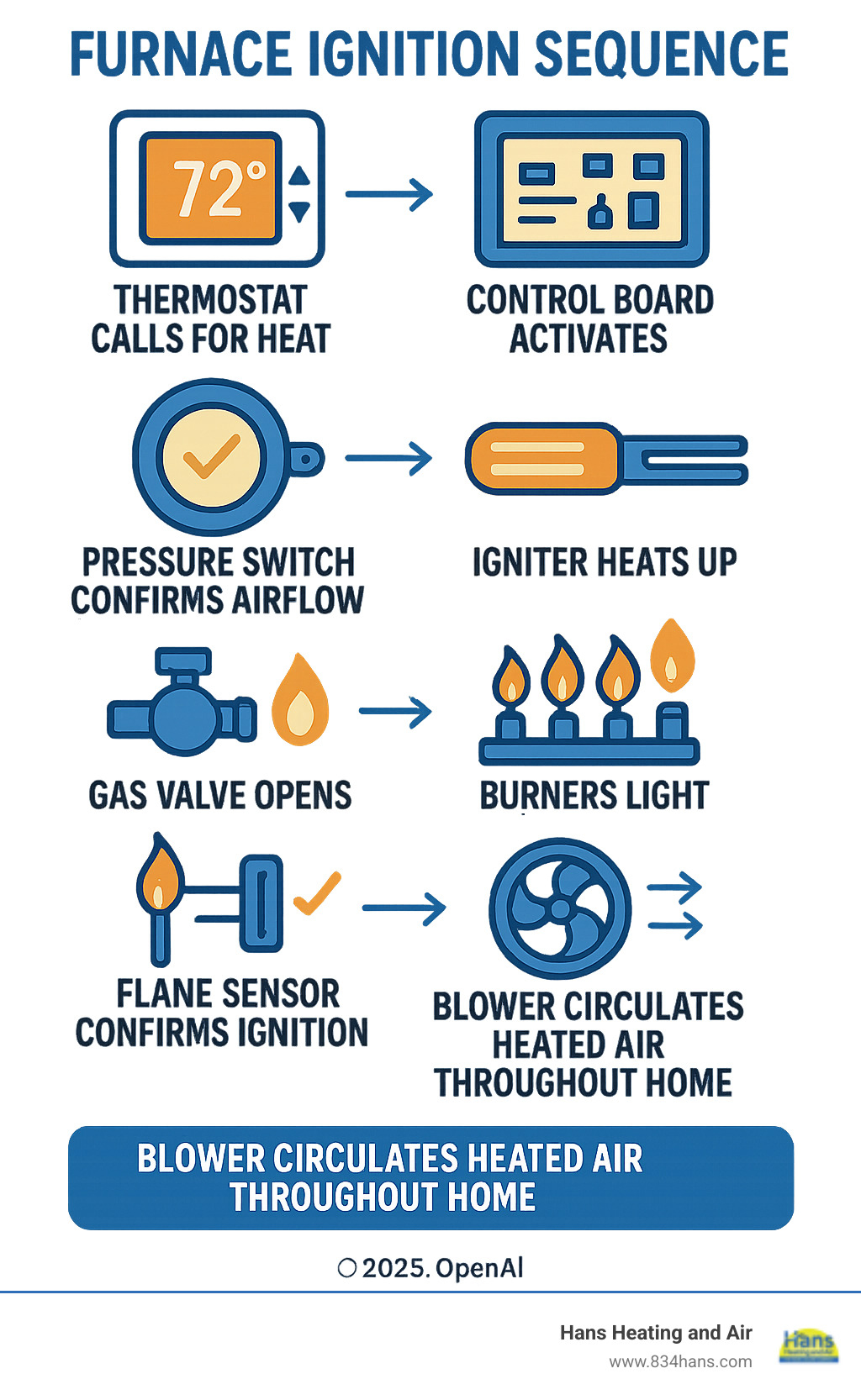

The Typical Ignition Sequence, Step by Step

1. Thermostat calls for heat and signals the control board.
2. Draft inducer motor starts to establish proper venting.
3. Pressure switch proves adequate airflow through the venting system.
4. Ignition source activates (pilot spark, intermittent pilot, or HSI).
5. Gas valve opens and burners light.
6. Flame sensor proves flame; if not proven, gas is shut off.
7. After a short delay, the blower motor engages to distribute warm air.

If any proof step fails (like the pressure switch or flame sensor), the board will halt the cycle to keep you safe.

What Commonly Interrupts the Sequence

• Blocked or undersized venting/condensate drain issues: High-efficiency furnaces create condensate; a clogged drain can prevent the pressure switch from closing, so the furnace won’t ignite.
• Weak or failed igniter: HSIs age and can crack; even a faint glow may be too weak to light gas.
• Dirty burners: Rust and debris can distort the flame pattern, preventing flame sensing.
• Faulty or sooted flame sensor: A lightly corroded sensor can’t detect flame, leading to short cycling or no ignition.
• Inducer or pressure switch faults: A failing inducer motor or stuck-open pressure switch stops ignition for safety.
• Rollout or high-limit switch open: Overheating or flame rollout trips safeties that must be resolved before relighting.
• Door switch not engaged: If a service panel isn’t seated, the unit won’t run.

Tip: If you have a standing pilot system, a worn or mispositioned thermocouple can misread the pilot flame and shut off gas to the burners. This small, inexpensive sensor is a frequent culprit on older furnaces.

Knowing the basic sequence and the role of each component helps you understand what you’re seeing and hearing when the furnace tries—and fails—to start. If you note the exact behavior (for example, inducer runs, igniter glows, burners light briefly, then shut off), a technician can pinpoint the likely cause faster.
